Description

Realize the laser cutting function of fingerprint chip, can cut all kinds of flexible circuit board materials and PCB materials.

According to the different product models, the replacement of different jig, so that the equipment can meet a variety of products.

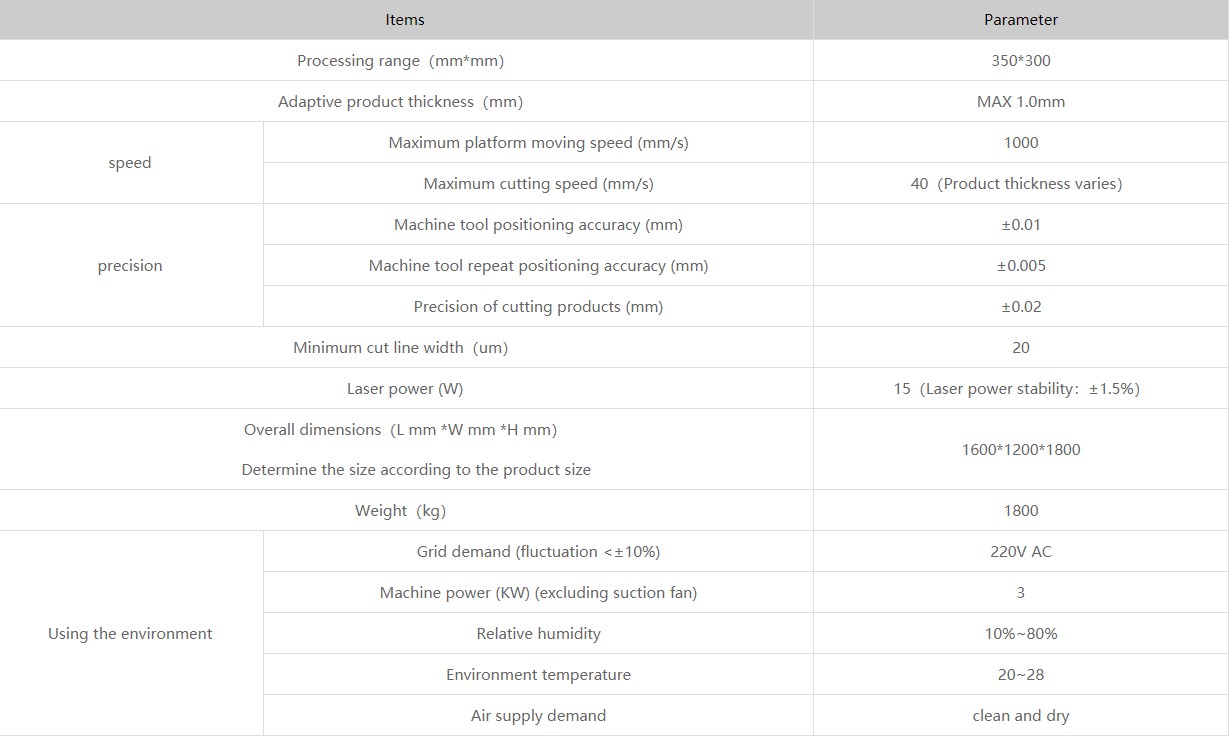

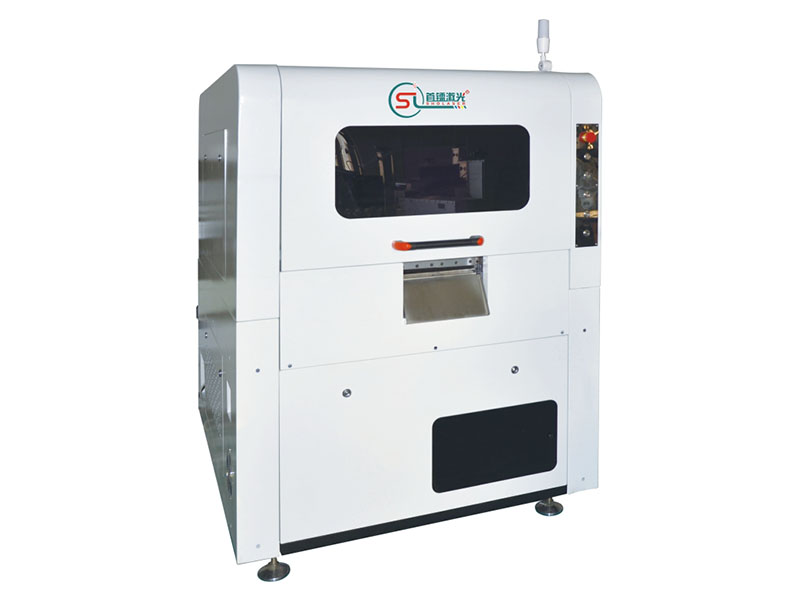

Equipment size: 1600*1200*1800mm (can be customized according to product size)

Machine shell: sheet metal paint structure

UPH=700 (cutting speed varies according to product type)

The integrated cutting precision of the equipment is ±0.02mm

CCD positioning accuracy ±0.002mm

The device has the function of parameter debugging storage and needs to add a spare hard disk for data backup.

The equipment has a dust extraction system to meet the requirements of thousand-level dust-free cleanliness.

Anti – reverse problem, all kinds of reverse situation, good positioning effect.

Cutting appearance: no carbonization, no burr, no edge breakage, no layering, precision, smooth, straight side wall.

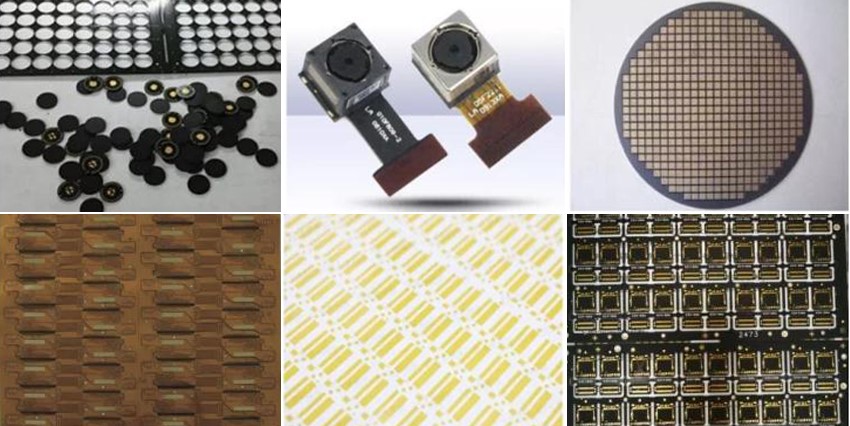

Suitable for FPC auxiliary covering film (CVL), flexible board (FPC), soft and hard combined board (RF) and thin multilayer board cutting forming, under the screen fingerprint module, as well as window and uncovering, camera module and PCB board cutting.
