Description

① After connecting multiple pieces of PCBA boards after solding,it often breaks the circuit or breaks the electronic parts.Using this machine can avoid damage and improve work efficiency and quality.

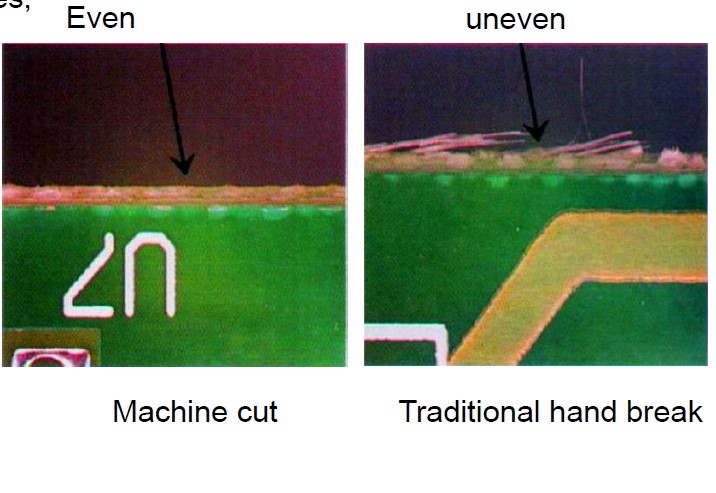

② Cutting by knife-type travel can completely reduce the stress and prevent cracks in the solder joints and parts from breaking.

③ Using Upper round knife and the lower flat knife method,the PCB board is placed on the lower flate knife,once the switch is stepped on,the upper round knife move to set fixed point,that is ,the PCB is cutted and divided without board edge and the cut is flat.

④ the cutting distance of the knife can be set freely according to the length of the PCB board.Stop point:0-100-200-300-400mm.

⑤ There is a cut-ofaffle at the back of the knife,which can be adjusted according to different width PCB boards.It can also easily cut PCBAs without V-CUT grooves,acccurately without oblique cutting.

⑥ Can fin-tune the thickness of various PCB boards to solve the depth of V-CUT grooves on PCB boards.

⑦ The uppper and lower knives are improted high-speed steel materials,which are extremely durable.when the knives are unfavorable,they can be reground,whihc can ground about 7 to 10 times

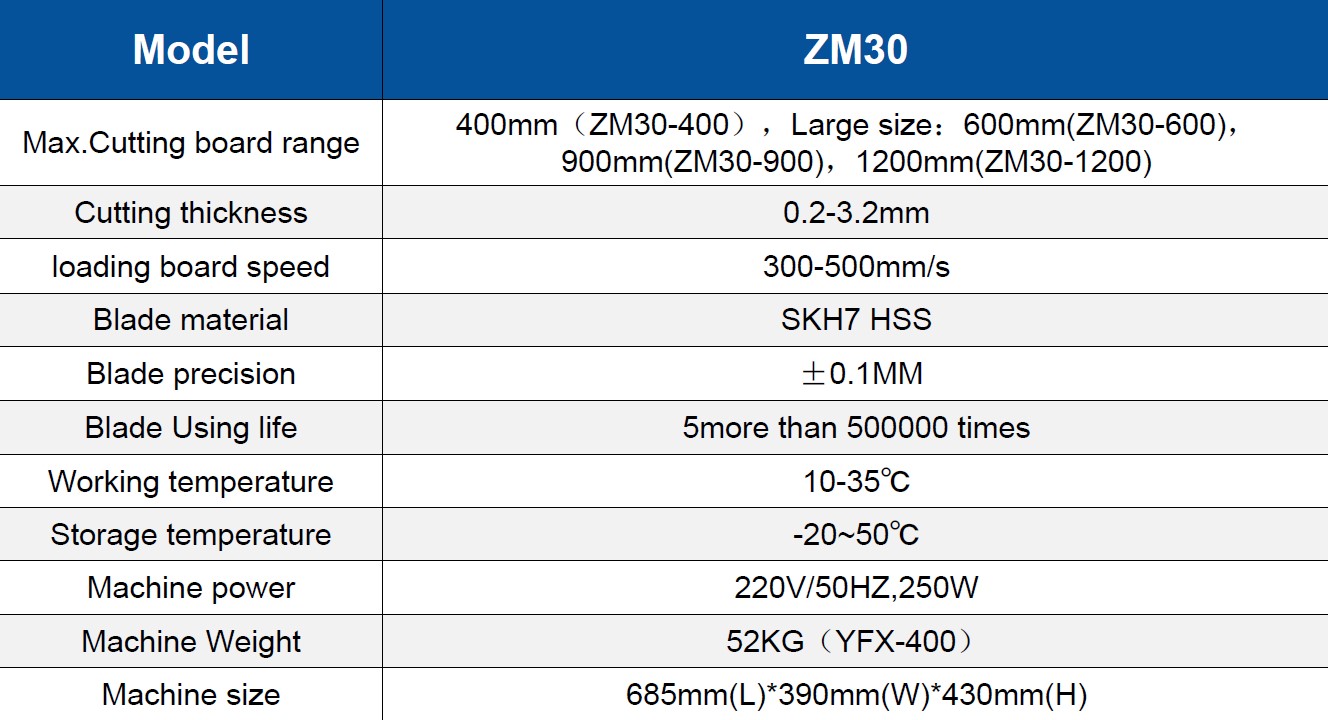

Specifications:

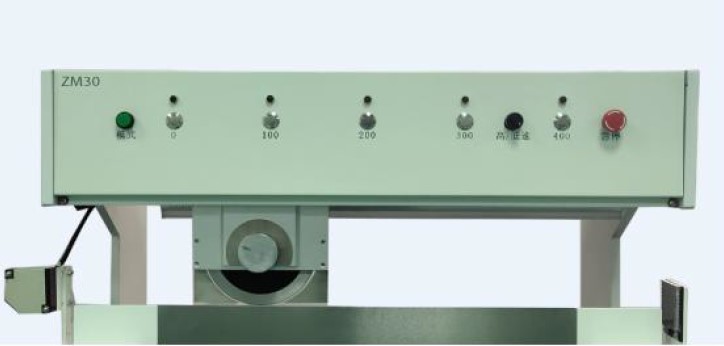

1. High speed/Low sepped switch is speed changeover switch.

2. ZM30-400 knife route 0，100，200、300、400

ZM30-600 knife route 0，150，300、450、600

ZM30-900 knife route 0，200，400、600、900

ZM30-1200 knife route 0，300，600、900、1200

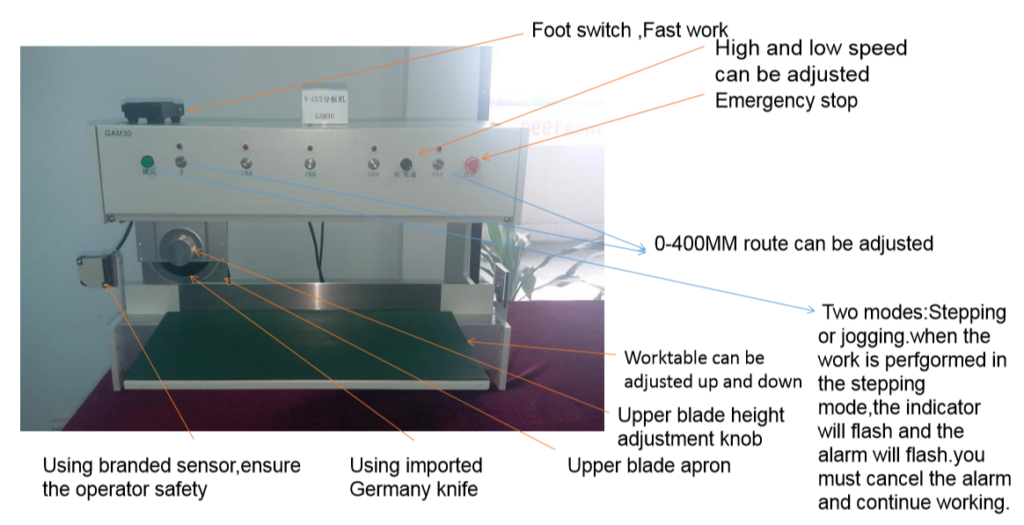

3. Two modes:Stepping or jogging.when the work is performed in the stepping mode,the indicator will flash and the alarm will flash.you must cancel the alarm and continue working.

4. Reduce the stress and prevent cracks in solder jointes.

5. Fixed during separation to ensure product quality.

6. High efficiency,up to 300MM/S，the speed can be adjusted.

7. High accuracy,easy maintenance and high safety.

8. Special round knife material design to ensure smooth of PCBA surface.

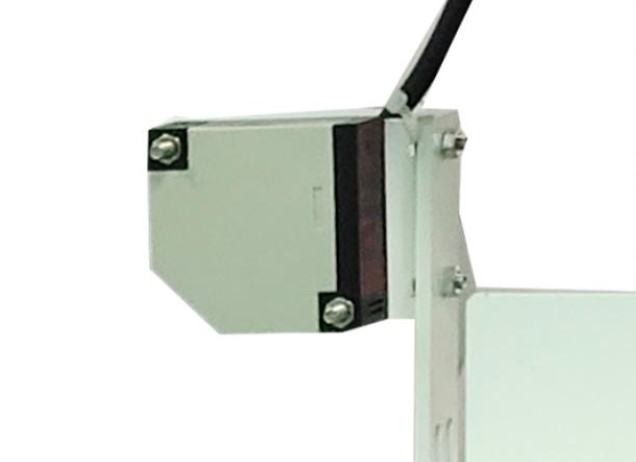

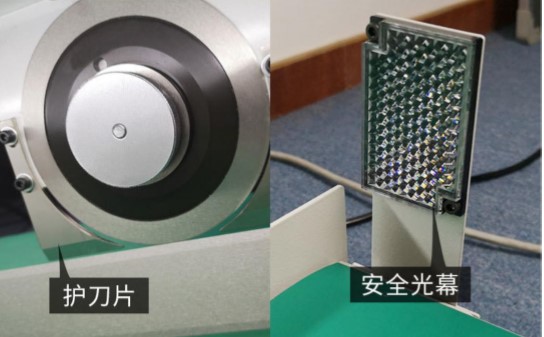

Safety can be controlled： Upper round knife has blade protector,can prevent the fingers from cutting. Safety light curtain(optional).when you hand in the knife movement area,the machine will automatically stop ,then ensure the safety operation.















Application:
It is suitable for cutting of various PCB,SMT circuit boards,aliminum substrates,LED circuit boards with V-slots.
Mainly used in LED industry,SMT industry,mobile phone/MP3 MP4 industry,electric toy industry and various electronic industries.
